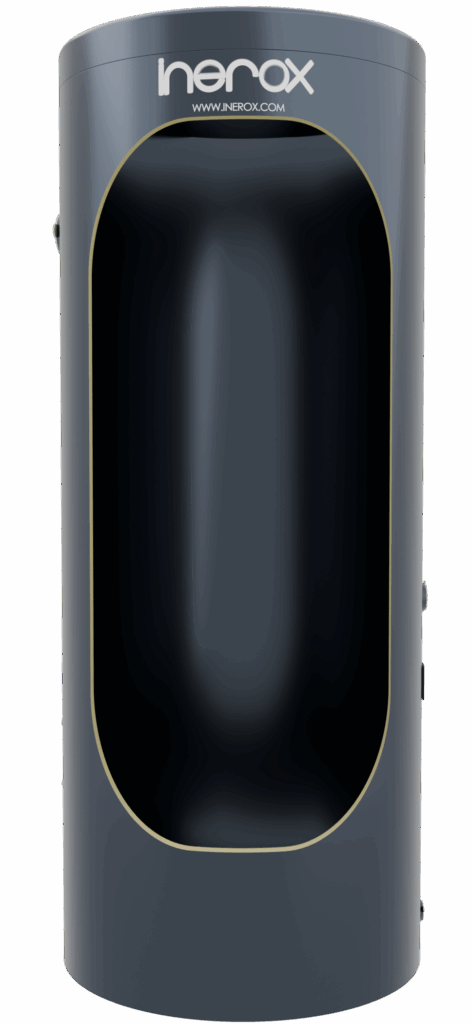

| Vol. (lts) | A (mm.) | B (mm.) | C (mm.) | D (mm.) | D1 (mm.) | E (mm.) | F (mm.) | G (mm.) |
|---|---|---|---|---|---|---|---|---|
| 150 | 1410 | 1225 | 945 | 470 | 370 | 795 | 505 | 405 |
| 200 | 1312 | 1095 | 1095 | 560 | 470 | 945 | 555 | 400 |
| 300 | 1572 | 1345 | 1195 | 600 | 500 | 1045 | 605 | 500 |
| 500 | 1822 | 1590 | 1440 | 700 | 1290 | 1290 | 700 | 530 |
| Model AEDS-P | Posición / Unidad – medida | 0150 | 0200 | 0300 | 0500 |
|---|---|---|---|---|---|
| Volumen | lts. | 150 | 200 | 300 | 500 |
| Purgador aire | 1 /Inch | 1/2″ | 1/2″ | 1/2″ | 1/2″ |
| Ida intercambiador externo | 2 /Inch | 1″ | 1 « | 1 « | 1 « |
| Salida a consumo (ACS) | 3 /Inch | 1″ | 1″ | 1″ | 1″ |
| Ánodo proteccción | 4 /Inch | 3/4″ | 3/4″ | 3/4″ | 3/4″ |
| Sonda de control | 5 /Inch | 1/2″ | 1/2″ | 1/2″ | 1/2″ |
| Ida Serpentín | 6 /Inch | 1″ | 1″ | 1″ | 1″ |
| Recirculación | 7 /Inch | 1″ | 1″ | 1″ | 1″ |
| Resistencia eléctrica (no incluida) | 8 /Inch | 1 1/4″ | 1 1/4″ | 1 1/4″ | 1 1/4″ |
| Sonda de control | 9 /Inch | 1/2″ | 1/2″ | 1/2″ | 1/2″ |
| Retorno intercambiador externo | 10 /Inch | 1″ | 1″ | 1″ | 1″ |
| Retorno Serpentín | 11 /Inch | 1″ | 1″ | 1″ | 1″ |
| Entrada agua red | 12 /Inch | 1″ | 1″ | 1″ | 1″ |
| Desagüe | 13 /Inch | 3/4″ | 3/4″ | 3/4″ | 3/4″ |
| Brida Limpieza | 14 /Interior mm. Exterior mm | 144 200 | 144 200 | 144 200 | 144 200 |
